Innovative
- No compressed air is used with the patent-pending airtool
- Machine design optimized for minimal weight
- C-holder for 90° machining of anterior teeth
- Modular machine design to optimize servicing and maintenance
Description
Features
Technical Details
Downloads
Description

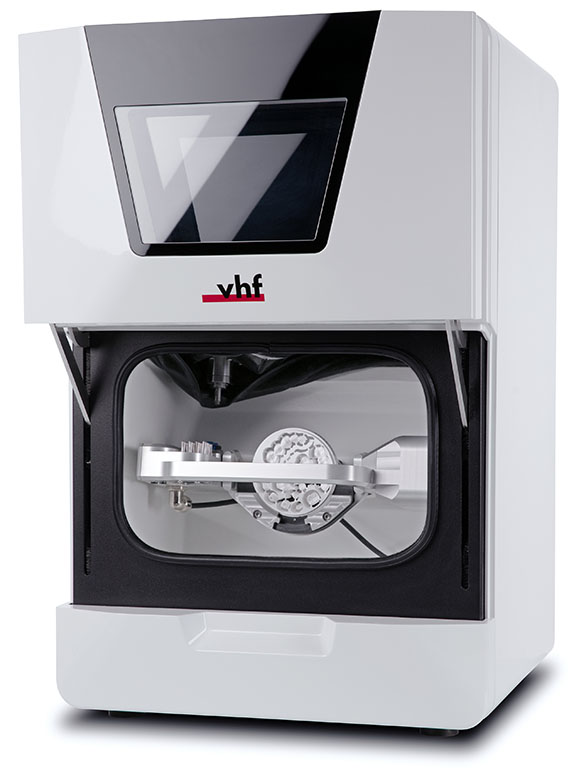

Disc milling with ease.
The innovative solution for dry processing in the practice and the laboratory.
The E5 requires no compressed air; therefore, you have maximum freedom in the choice of the installation site and also benefit from minimal operating costs. The open system architecture of the E5 makes your entry into the digital production of dental restorations quick and easy, and fits perfectly into your workflows. The integrated CAM software enables you to get started right away!
Plug & Mill: Unpack, connect, start milling!
At a glance
| Axes | 5 |
|---|---|
| Disc | 1 |
| Blocks | 6 |
| Tools | 17 |
Features
Fast & precise
- 800 W/60,000 rpm spindle
- 3 μm repeat accuracy
- Cast aluminum body for low vibration in operation
Independent
- Mills almost all materials up to CoCr sintered metals in a 98.5 mm disc format, holders available for 110 mm discs and blocks
- Maximum indication versatility with a rotating angle of ±35° in the 5th axis and blanks with a thickness of up to 40 mm
- dentalcam software with an open interface to all scanners and materials
Reliable
- 100% developed and manufactured in Germany
- Optimum manufacturing results and high durability with only premium quality industrial components
- 24-month guarantee
Cost-effective
- Sustainable operation with no compressed air
- Environmentally-friendly shipping due to the low weight of the machine
- Enables a fast and cost-effective entry into CAM production in the laboratory environment
- Extremely simple operation with the provided dentalcam software with directmill technology – no license fees
Technical Details
| General | |
|---|---|
| Fields of application | Dry machining |
| Materials | Composites, plastics/wax, zirconia, CoCr sintered metals · Discs, height 10–40 mm, diameter 98.5 mm · Blocks up to 40 × 20 × 20 mm (block holder required) |
| Indications | Crowns, bridges, inlays, onlays, veneers, occlusal splints, full dentures, denture frameworks, implant bars, abutments, screw retained crowns, screw retained bridges, surgery guides, primary crowns, secondary crowns, model plates, model tooth dies |
| Holder systems | Holder for 98.5 mm discs (integrated) · holder for 110 mm discs (optional) · block holder (optional) · Ivotion* accessory kit (optional) |
| Note | *Ivotion is a brand of Ivoclar Vivadent |
| Base System | |
| Construction | Machine bed made of solid cast aluminum body |
| Housing | White high-gloss lacquer finish · upward opening lift door to the workroom |
| Number of axes | 5 |
| Linear axes X-/Y-/Z-axis | Precision ball screws · motors with resolution < 1 μm · ground precision guides made of high-alloyed steel · repetition accuracy ± 0.003 mm |
| Rotary axis A-axis | Backlash-free tension shaft gear with highest angular accuracy · rotation angle: 360°, infinite |
| Rotary axis B-axis | Backlash-free tension shaft gear with highest angular accuracy · rotation angle: ± 35° |
| Control unit | 5-axis simultaneous control electronics with continuous path progression and dynamic pre-calculation · hardware based real-time operating system with standardized instruction set · FPGA-integrated processor · updateable hardware · real-time path and ramp calculation via dedicated hardware engines in the FPGA · four-quadrant control of the motors for particularly smooth running · multiple digital I/Os for controlling the peripherals · integrated inverter for synchronous and asynchronous motors, electronic gate detection · Ethernet and USB interface |
| Lighting | RGB LED lighting with status indication |
| Processing Modes | |
| Dry | Compressed air-free operation through use of airtools · hose connection for external suction unit on the back of the housing · 24 V switch output for controlling suction units |
