Maximum power
of up to 29 watts for efficient work
Description
Top Features
Variations
Downloads
Description
The experts among air-driven high-speed handpieces.
Expert series air-driven handpieces offer superior KaVo performance in a standard and mini-head handpiece. The KaVo Expert series air-driven handpieces are powerful, smooth and quiet. They provide superior KaVo performance even in difficult-to-access molar regions.
- High-tech FG chuck with carbide guide bushing
- Bur retention power of up to 30N
- Small head size for optimal access even in preparation areas that are difficult to access
- High performance of up to 29 watts (E680L) for fast work at high power, even during difficult preparations
- Ergonomic KaVo 100°/19° head-knee angle combination for excellent ergonomic access and a clear view
- Turbine body made of high-quality stainless steel in first-class KaVo workmanship
- 3rd generation cellular optics with 5-year warranty
- Recommended air pressure 41 psi (2.8 bar)
- 380,000 rpm resp. 420,000 rpm
Work efficiency with immediate effect and for the future.
Best price-longevity
- Improved safety and hygienic features thanks to the new, improved anti-reflux system when the turbine runs down; Internally conducted spray air and water and the new replaceable water filter.
- Improved treatment efficiency and accessibility thanks to the new smaller standard head and knee angles of 100 ° and 19 ° respectively.
- Efficient handling thanks to MULTIflex and ceramic bearings.
- The high-quality, low-wear materials in the KaVo Expert turbines and straight and contra-angles ensure maximum reliability, inimal servicing costs, excellent instrument service life.
- 2 year warranty - 2.5 year warranty if maintained using the KaVo QUATTROcare Plus Handpiece Maintenance System (only in the US)
Top Features
Maximum Chuck Strength
With a retention power of up to 30 N for secure retention of the bur
Whisper Quiet Operation
Quietest KaVo Air High-speed at 55 decibles
EXPERTgrip surface
for fast cleaning and excellent grip
High-tech FG chuck
with carbide guide bush for optimum longevity, precise cutting and safety.
Sterilizable
sterilizable at temperatures up to 135°C / 275°F
Replaceable spray microfilter
for effective and trouble-free spray cooling
Glass rod light conductor
with up to 25,000 lux for reliable detection of the preparation margins
4-port spray
with ultra-fine spray wetting for optimum cooling
Small head size
for easy, efficient access to the preparation area
Ceramic ball bearings
for excellent quiet and low-vibration operation
Optimum access
thanks to exceptional head/knee angle combinations
Variations

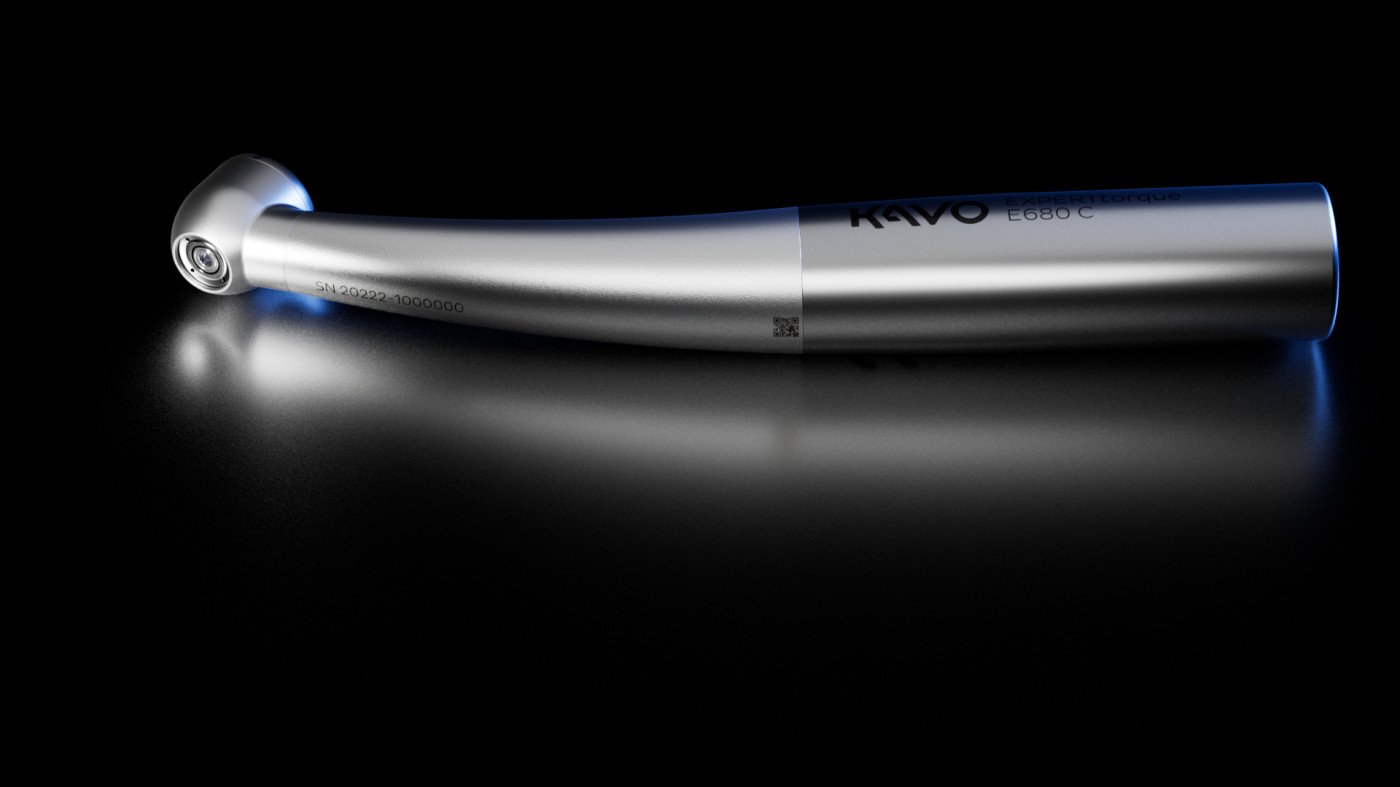

Part number: 1.006.9200
- Watt (at 3,5 bar, power depends on drive pressure and other parameters): Maximum power up to 29 watt at 3.5 bar
- Excellent view and accessibility due to small head size: Head height: 13.6 mm, head Ø: 12.5 mm
- Ideal combination of angles: Head angle: 100° Elbow angle: 19°
- KaVo press-button clamping system: up to 32 N retencion force
- Nozzle spray for optimum cooling: 4-port spray

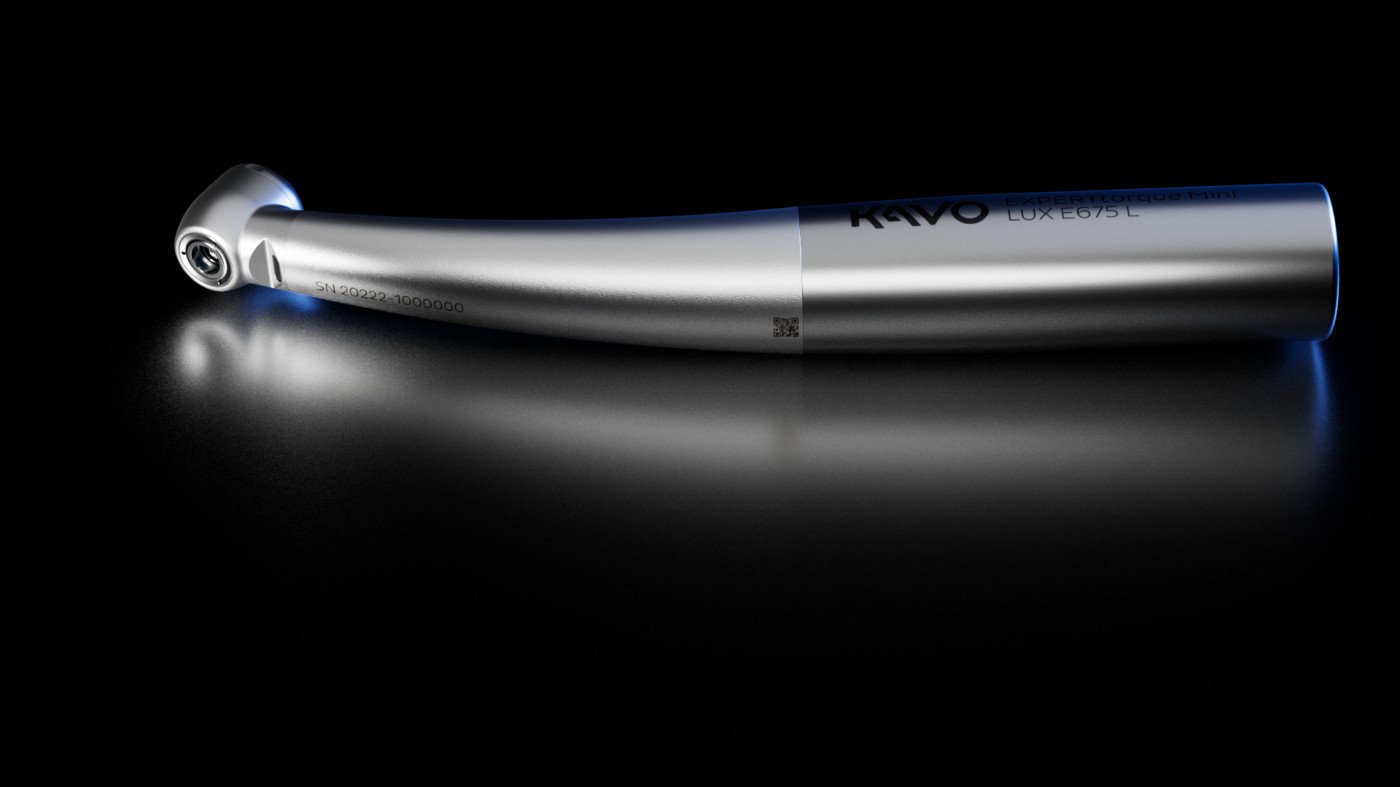

Part number: 1.006.6400
- Watt (at 3,5 bar, power depends on drive pressure and other parameters): approx 27 watt at 3.5 bar
- Excellent view and accessibility due to small head size: Head height: 12.2 mm, head Ø: 10.8 mm
- Ideal combination of angles: Head angle: 100° Elbow angle: 19°
- KaVo press-button clamping system: up to 32 N retention force
- Nozzle spray for optimum cooling: 4-port spray
