Top performance you can depend on.
Whether electric or air-operated, all KaVo micro-motors boast the reliability we’ve come to expect from KaVo, not to mention a consistently great performance across the entire speed range. The smart KaVo SMARTdrive motor control system offers additional convenience and extra power precisely when it is needed.
- Easy connection to your air-operated treatment unit via 6-pin connection or MULTIflex
- Powerful air-driven motor with a speed range from 5,000 to 20,000 rpm

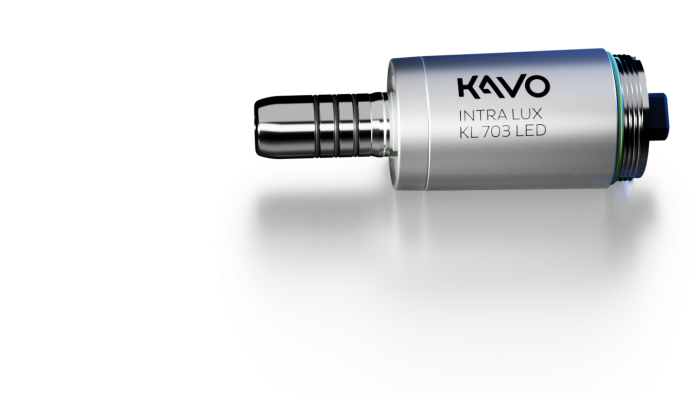

- Sterilizable for dependable hygiene (INTRA LUX Motor KL 703 LED)
- Brushless INTRA LUX motors with powerful torque of up to 3 Ncm (INTRAlux)
- Light weight, perfectly balanced for better ergonomics
Electric-driven motor
- Integrated brushless micromotor with endo function
- The perfect combination of power and comfort: fatigue-free work thanks to reduced weight and optimum balance
- Speed range:
- 100 - 40,000 rpm in combination with the SMARTdrive motor control (SMARTdrive optimised)
- 2,000 - 40,000 rpm with normal motor control
- Controllable torque, up to 3 Ncm torque
- Sterilizable
- Precise control through foot control
- No independent endo motor needed
- Field exchangeable LED bulb
- 36 months guarantee
- Part no. 1007.0150

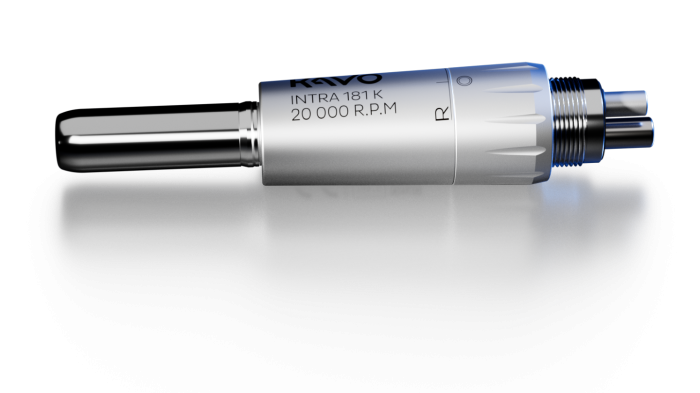

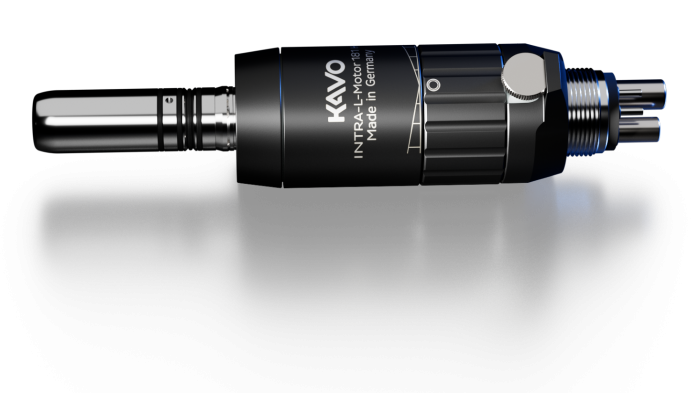

Air-driven motors
- Speed range up to 20,000 rpm
- 4-hole connection
- Non optic
- Forward / reverse speed adjustment
- Sterilizable
- 36-44 PSI (2.5-3.5 bar)
- No water, no chip air
- 1-year warranty
- Part No. 0535.5260

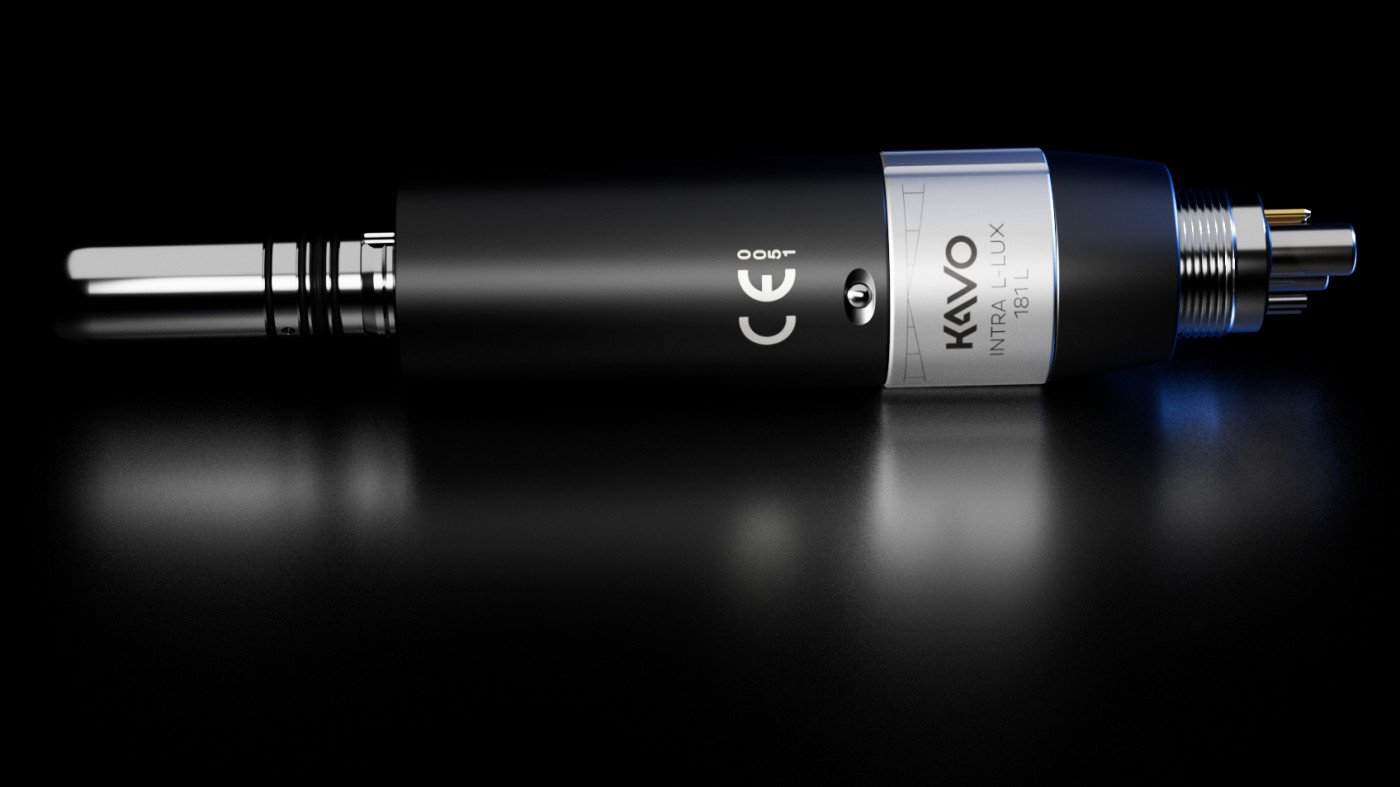

- Optic
- Speed range up to 20,000 rpm
- Forward / reverse speed adjustment
- Internal air / water coolant
- 6-pin connection
- Fits all attachments optic or non-optic with Universal “E” type connection
- Anti-retraction system
- 31-39 psi (2.2-2.7 bar)
- KaVo high-pressure lamp replaceable by user
- Sterilizable
- 1-year warranty
- Part no. 0535.5210
- Non-optic
- Speed range up to 20,000 rpm
- Forward / reverse speed adjustment
- Internal air / water coolant
- 4-hole connection
- Fits all non optic attachments with Universal “E” type connection
- Anti-retraction system
- 31-39 psi (2.2-2.7 bar)
- 1-year warranty
- Sterilizable
- Part no. 0535.5200

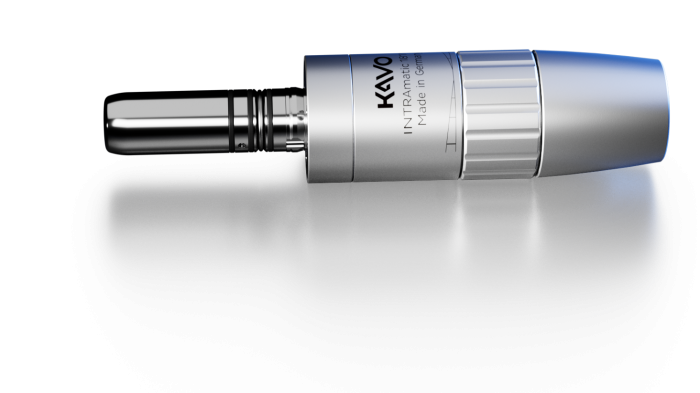

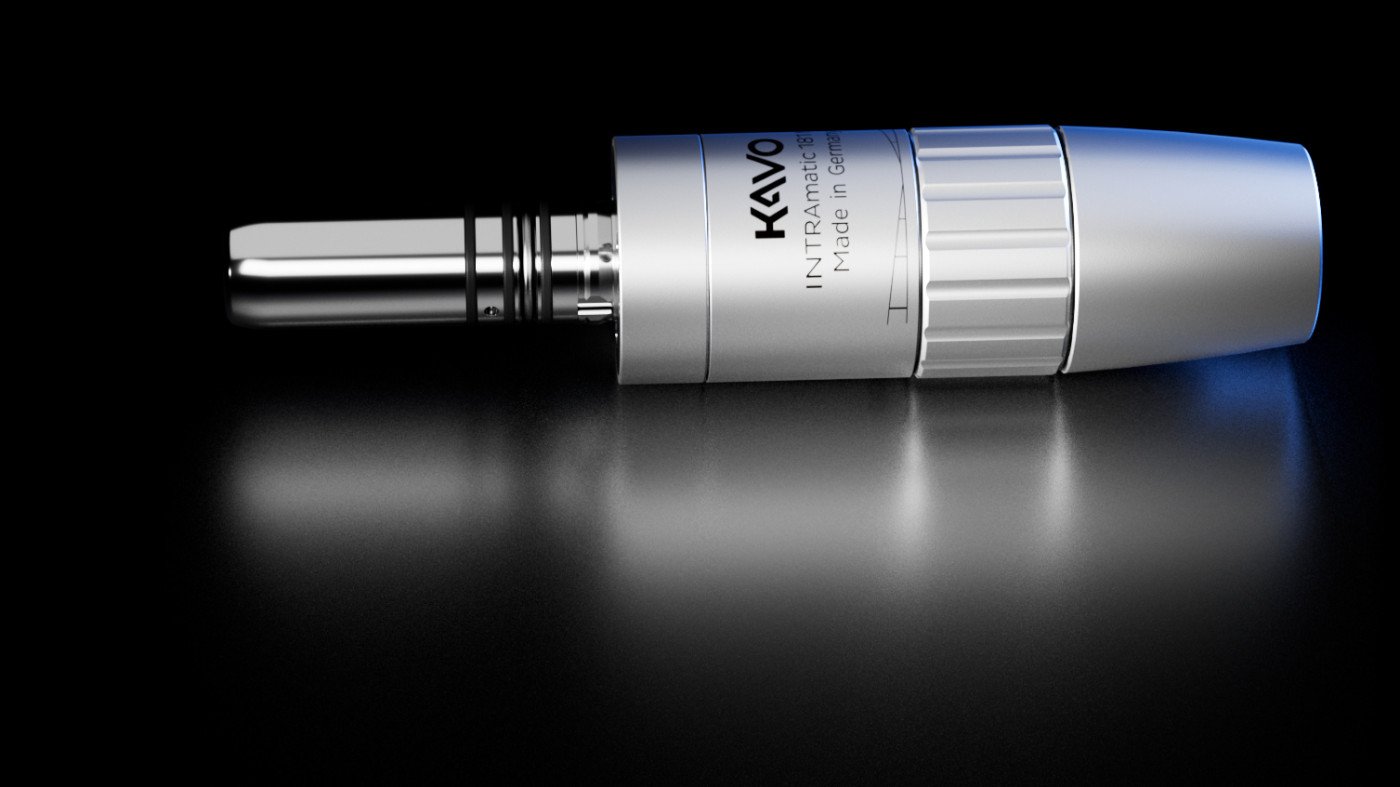

- Non-optic
- Speed range up to 20,000 rpm
- Forward / reverse speed adjustment
- Connects to non-optic KaVo MULTIflex coupler
- Adjustable water spray filter
- 31-39 psi (2.2-27 bar)
- 1-year warranty
- Sterilizable
- Part no. 0535.5250

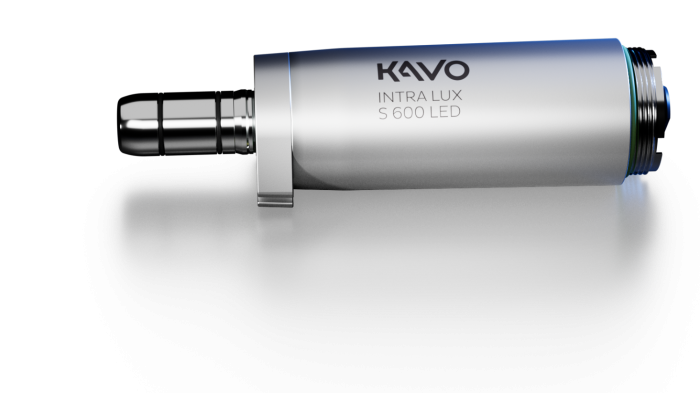

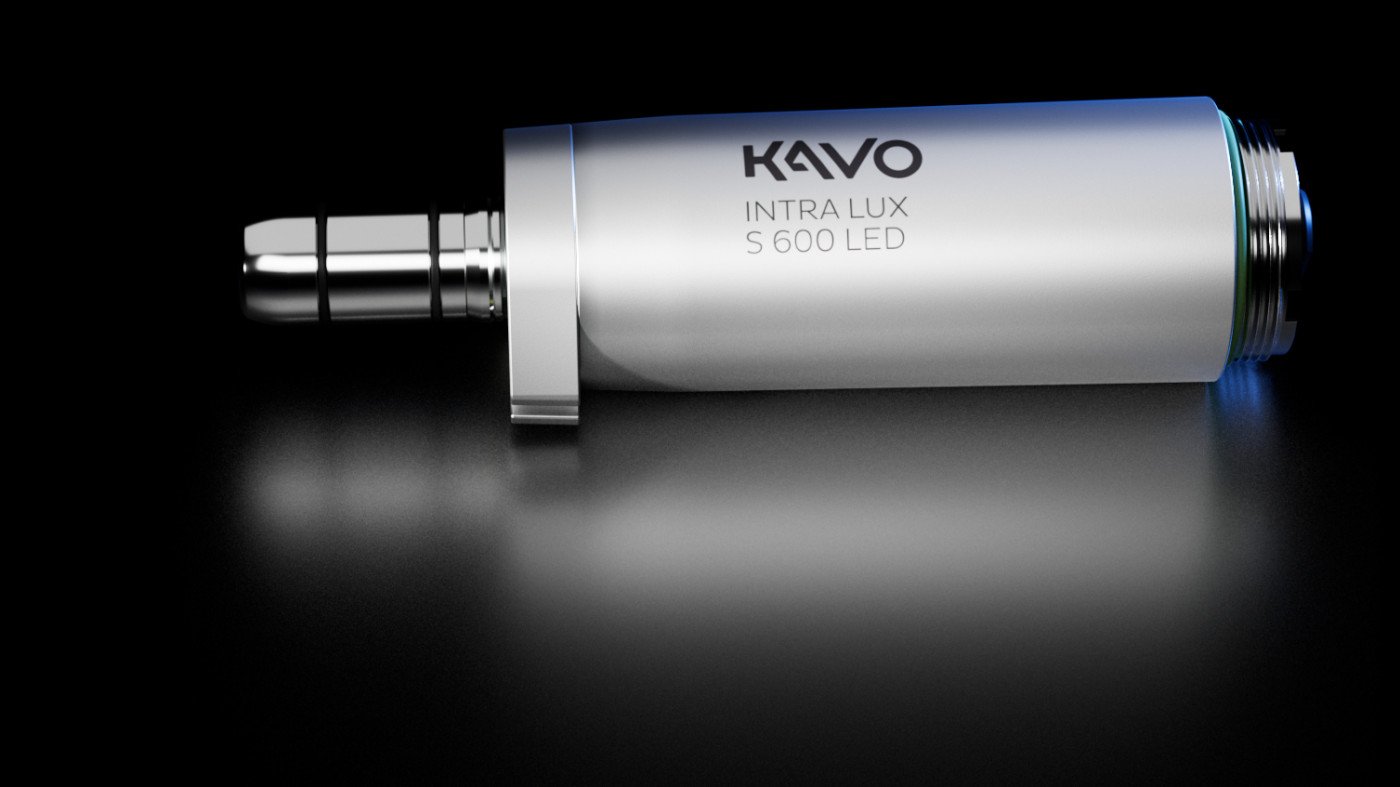

Surgery motor
- One of the world’s lightest surgical micro-motors
- Ergonomic operation thanks to 28% lighter and 20% shorter motor delivering the same level of power
- All-metal surface
- Speed range 0-40,000 rpm
- Immediate, gentle start
- Motor torque max. 5.5 Ncm
- Light 25,000 Lux
- Sterilizable
- Part no. 1008.8000
Motor control SMARTdrive with INFORM TECHNOLOGY
High torque for all dental procedures
Thanks to the pilot drive, the torque is much higher even in the low speed range. This supports safe and precise operation, which in turn reduces treatment times.
- Increased torque
- Improved startup characteristics
- Wider speed range
- Extended area of application
With the new KaVo SMARTdrive you immediately obtain more comfort and more power as standard and at no extra cost.

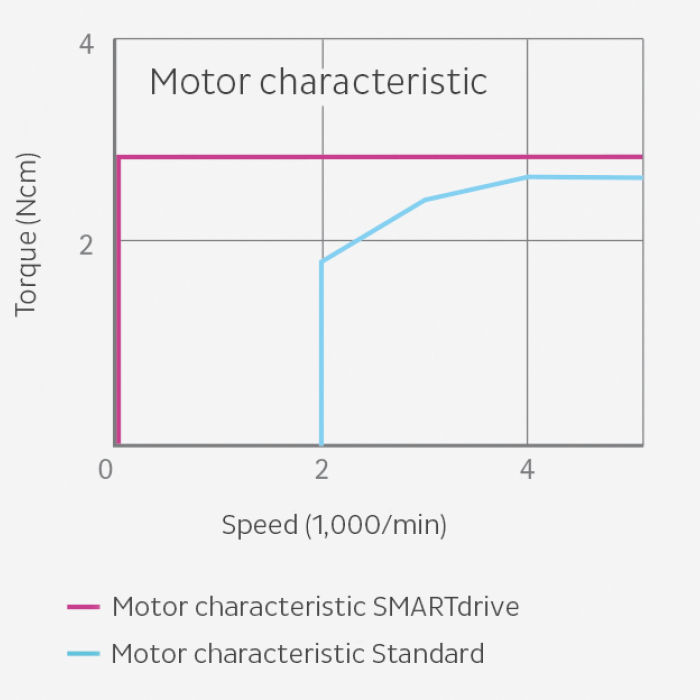

Vibration-free, smooth startup characteristics.
KaVo SMARTdrive offers especially vibration-free startup characteristics in the low speed range from as little as only 100 revolutions per minute.
- Motor characteristic Standard: perceptible and audible jerking
- SMARTdrive INFORM TECHNOLOGY: Vibration-free, smooth startup characteristics
KaVo SMARTdrive now offers you a wider speed range – this extends from just 100 to 40,000 revolutions per minute, compared with the previous 2,000 to 40,000 revolutions per minute.
In general, all straight and contra-angle handpieces are more versatile, due to the wider speed range, which results in an extension of the area of application per handpiece.
