Description
Getting started with premium instruments has never been easier.
SMARTmatic straight and contra-angle handpieces combine excellent conditions with amazing performance, reliability, versatility, and efficiency. Innovative technology, high-quality materials and outstanding German-made workmanship – all at a great price. Smart or what?
Â
- Extensive portfolio of straight and contra-angle handpieces with and without spray
- Suitable for instruments with different gear transmissions and reduction ratios for applications from prophylaxis to endodontics
- Premium German-made KaVo workmanship
- Smaller head size for a better view
- Ceramic sliders within the clamping system for reliability and secure bur holding
- Sterilizable up to 275°F (135°C)
Smaller head size for a better view.
Ceramic sliders within the clamping system for enduring and secure tool holding.
Rust-free stainless steel for long-lasting durability
Extremely precise ball bearings for a high degree of efficiency.
Light-weight for tireless and ergonomic working
Optimum balance for precise treatment
SMARTmatic for Restoration.
- Transmission 1:1
- Maximum operating speed 20,000 rpm
- Latch type chuck system
- Small head size
- Compatible with INTRA 181 K Air motor
- 1-year warranty
- Part. no 1011.6751
- Transmission 1:1
- Maximum operating speed 20,000 rpm
- Friction grip chuck system
- Small head size
- Compatible with INTRA 181 K Air motor
- 1-year warranty
- Part no. 1011.6771
- Transmission 1:1
- Maximum operating speed 20,000 rpm
- For straight handpiece and contra-angle burs
- Compatible with KaVo 181 K Air motor
- 1-year warranty
- Part. no 1011.6731
- Transmission 1:1
- Maximum operating speed 40,000 rpm
- Small head size
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M Quick Disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part. no 1011.6750
- Transmission 1:1
- Maximum operating speed 40,000 rpm
- For straight handpiece and contra-angle burs
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6730
SMARTmatic for Prophylaxis.
- Transmission 8:1
- Maximum motor speed 2,500 rpm
- Doriot chuck system
- Compatible with INTRA 181 K air motor
- 1-year warranty
- Part no. 1011.6741
- Transmission 8:1
- Maximum motor speed 2,500 rpm
- Snap-on chuck system
- Compatible with INTRA 181 K Air motor
- 1-year warranty
- Part no. 1011.6761
- Transmission 8:1
- Maximum motor speed 20,000 rpm
- Doriot chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6740
- Transmission 8:1
- Maximum motor speed 20,000 rpm
- Sealing system to prevent intrusion of paste
- Screw-in (snap-on) chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6760
- Transmission 8:1 70° Oscillating
- Maximum motor speed 20,000 rpm
- Sealing system to prevent intrusion of paste
- Screw-in (snap-on) chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6800
- Transmission 8:1 70° Oscillating
- Maximum motor speed 20,000 rpm
- Usable with polishing and root canal instruments
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6810
SMARTmatic for Endodontics.
- Transmission 8:1
- Maximum motor speed 40,000 rpm
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6780
- Transmission 32:1
- Maximum motor speed 40,000 rpm
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part. no 1011.6790
- Transmission 8:1 70° Oscillating
- Maximum motor speed 20,000 rpm
- Usable with polishing and root canal instruments
- Latch type chuck system
- Compatible with INTRA 181 H air motor, INTRAmatic 181 M quick disconnect air motor and INTRA LUX KL703 LED electric motor
- 1-year warranty
- Part no. 1011.6810
Variations
- Primary Indication: Restorative
- Operating speed transmission: 1:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: For straight handpiece and contra-angle burs
- Primary Indication: Restorative
- Operating speed transmission: 1:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: Small head size
- Primary Indication: Restorative
- Operating speed transmission: 1:1
- Max. operating speed (rpm): 40,000
- Chuck system: Friction grip
- Features: Small head size
- Primary Indication: Restorative
- Operating speed transmission: 1:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: For straight handpiece and contra-angle burs
- Primary Indication: Restorative
- Operating speed transmission: 1:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: Small head size
- Primary Indication: Prophy
- Operating speed transmission: 8:1
- Max. operating speed (rpm): 20,000
- Chuck system: Doriot
- Features: -
- Primary Indication: Prophy
- Operating speed transmission: 8:1
- Max. operating speed (rpm): 20,000
- Chuck system: Screw-in (Snap-on)
- Features: Sealing system to prevent intrusion of paste
- Primary Indication: Prophy
- Operating speed transmission: 8:1
- Max. operating speed (rpm): 20,000
- Chuck system: Doriot
- Features: -
- Primary Indication: Prophy
- Operating speed transmission: 8:1
- Max. operating speed (rpm): 20,000
- Chuck system: Screw-in (Snap-on)
- Features: Sealing system to prevent intrusion of paste
- Primary Indication: Prophy
- Operating speed transmission: 8:1 (70° Oscillating rotation)
- Max. operating speed (rpm): 20,000
- Chuck system: Screw-in (Snap-on)
- Features: Sealing system to prevent intrusion of paste
- Primary Indication: Prophy, Endo
- Operating speed transmission: 8:1 (70° Oscillating rotation)
- Max. operating speed (rpm): 20,000
- Chuck system: Latch type
- Features: Usable with polishing and root canal instruments
- Primary Indication: Endo
- Operating speed transmission: 8:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: -
- Primary Indication: Endo
- Operating speed transmission: 32:1
- Max. operating speed (rpm): 40,000
- Chuck system: Latch type
- Features: -
Specifications
| SMARTmatic | Primary Indication | Operating speed transmission | Max. operating speed (rpm) | Chuck system | Features |
|---|---|---|---|---|---|

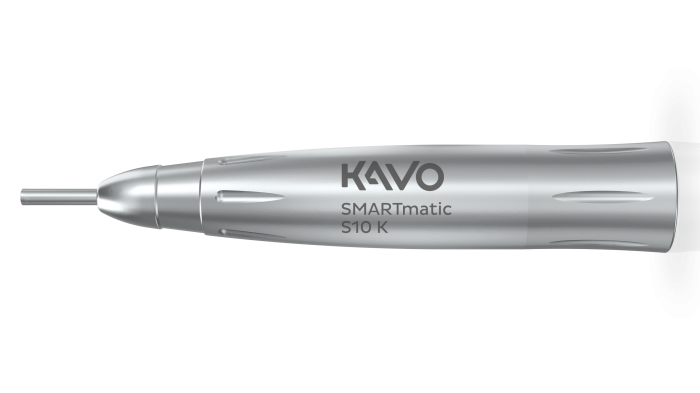

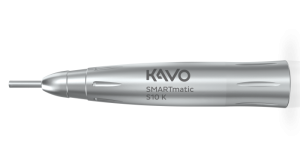

| S10 KÂ | Restorative | 1:1 | 40,000 | Latch type | For straight handpiece and contra-angle burs |

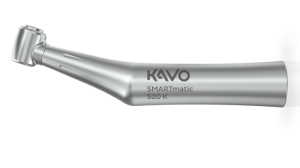

| S20 K | Restorative | 1:1 | 40,000 | Latch type | Small head size |

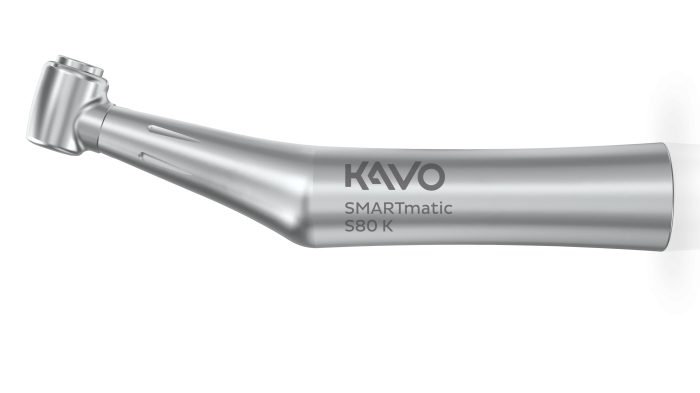

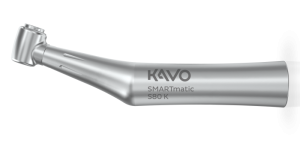

| S80 K | Restorative | 1:1 | 40,000 | Friction grip | Small head size |

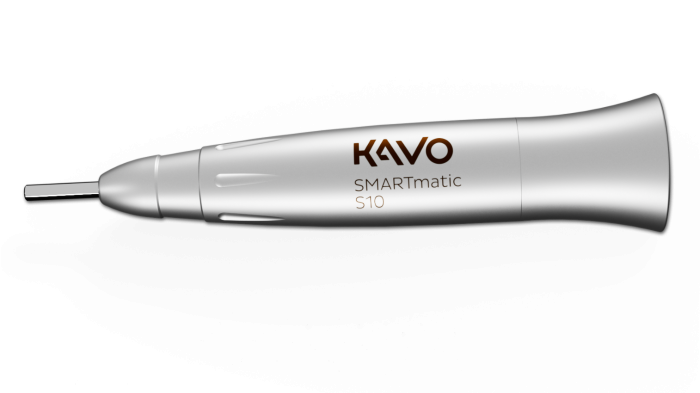

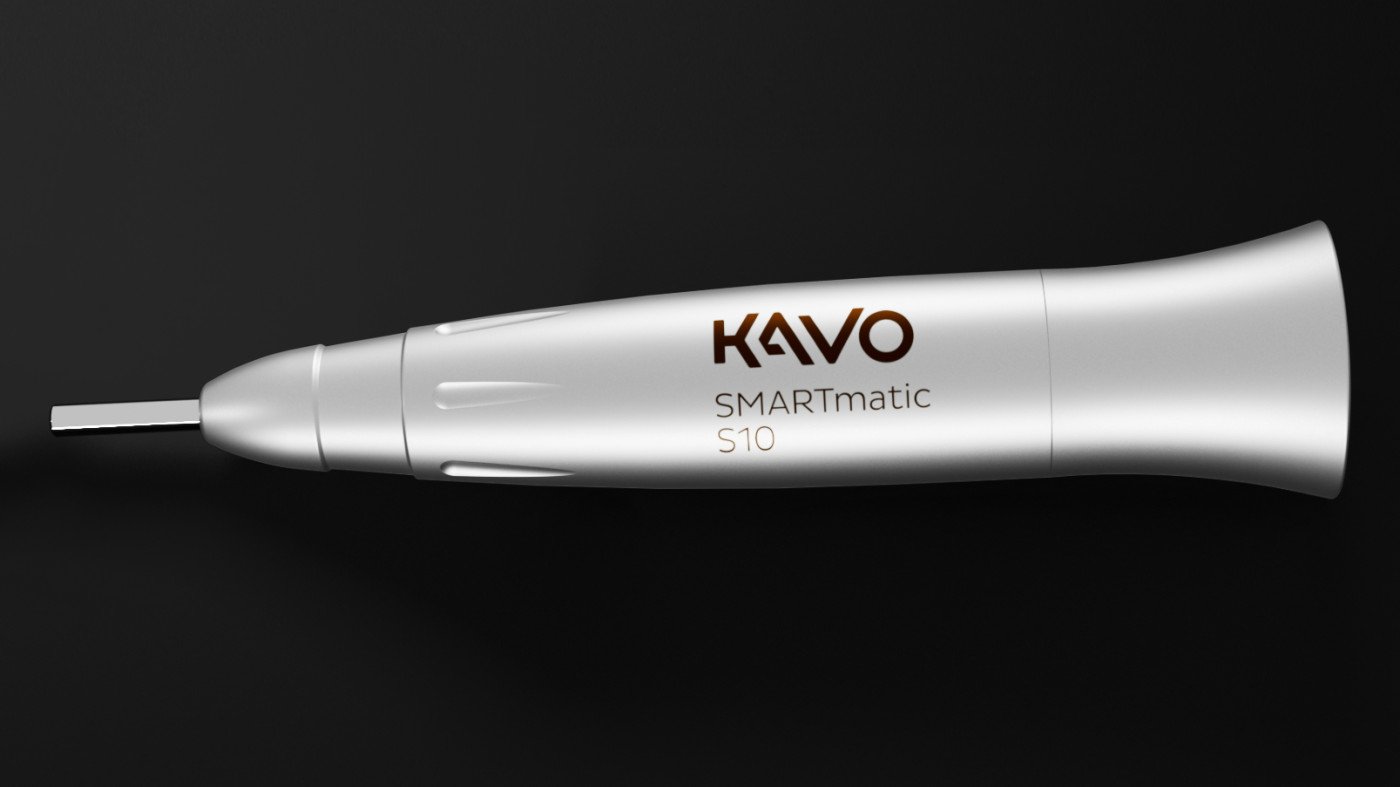

| S10 | Restorative | 1:1 | 40,000 | Latch type | For straight handpiece and contra-angle burs |

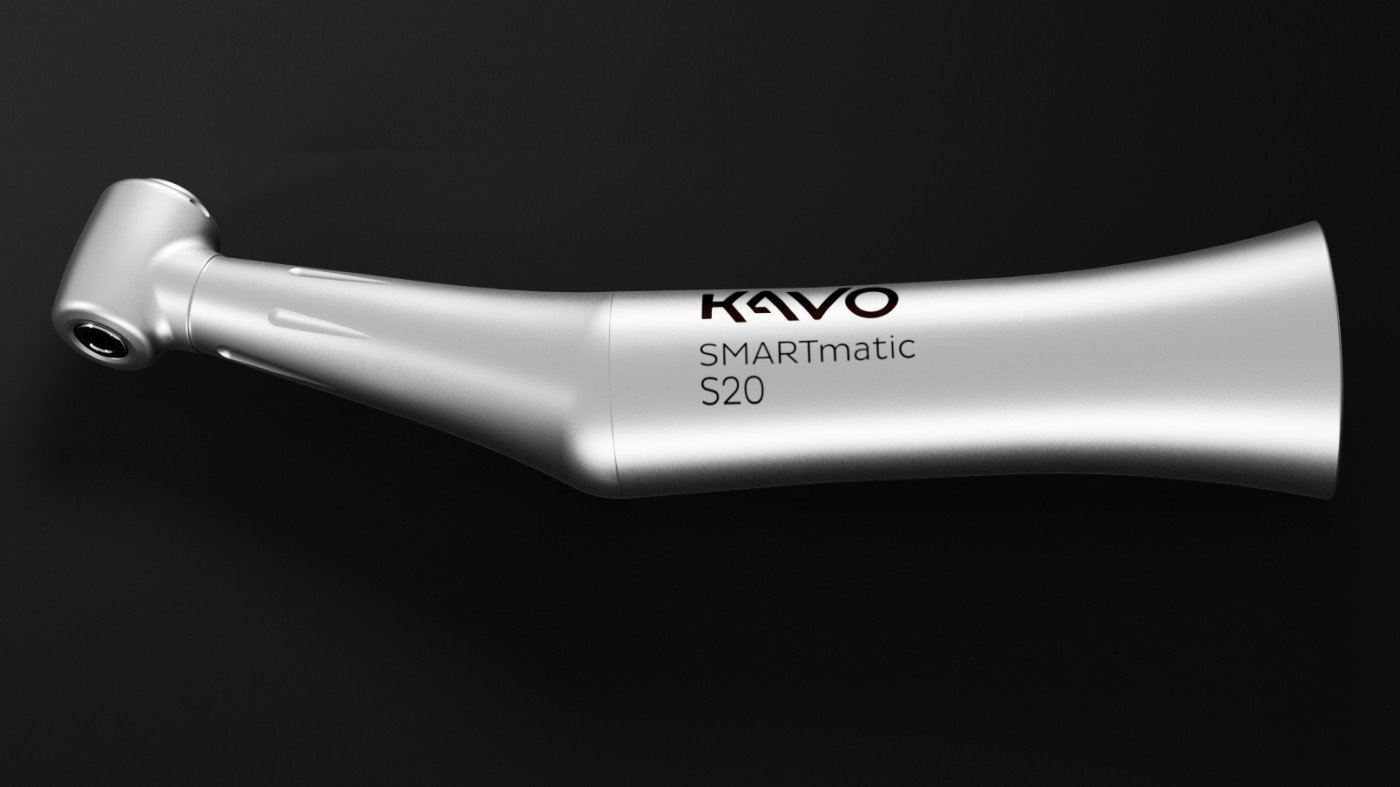

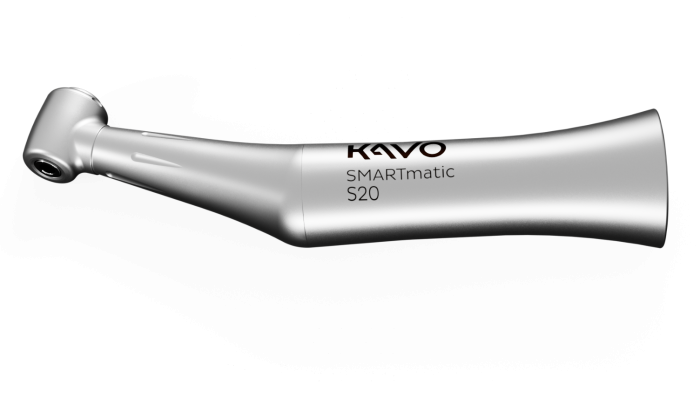

| S20 | Restorative | 1:1 | 40,000 | Latch type | Small head size |

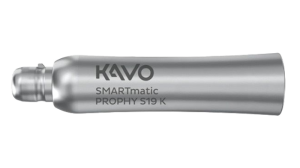

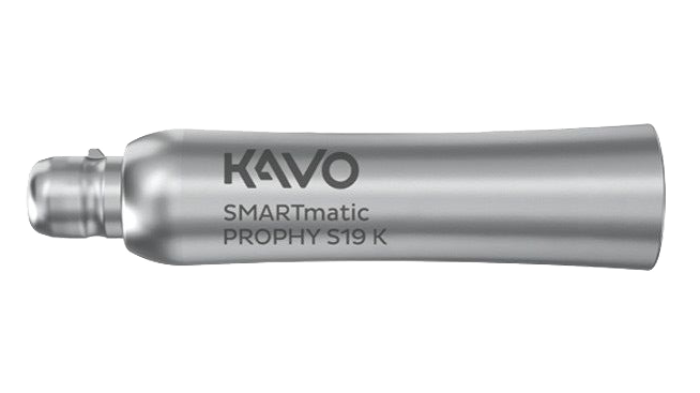

| S19 K | Prophy | 8:1 | 20,000 | Doriot | - |

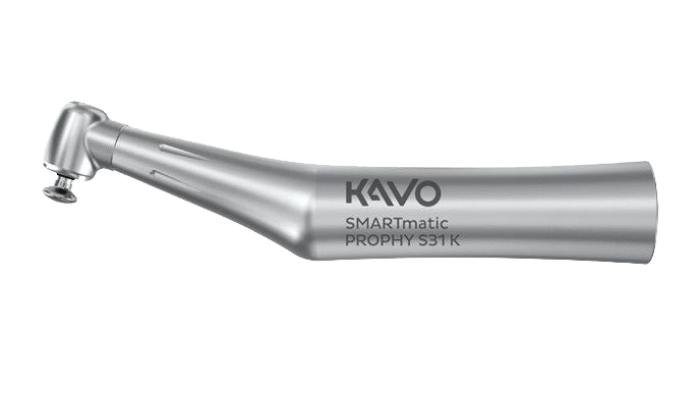

| S31 K | Prophy | 8:1 | 20,000 | Screw-in (Snap-on) | Sealing system to prevent intrusion of paste |
| S19 | Prophy | 8:1 | 20,000 | Doriot | - |

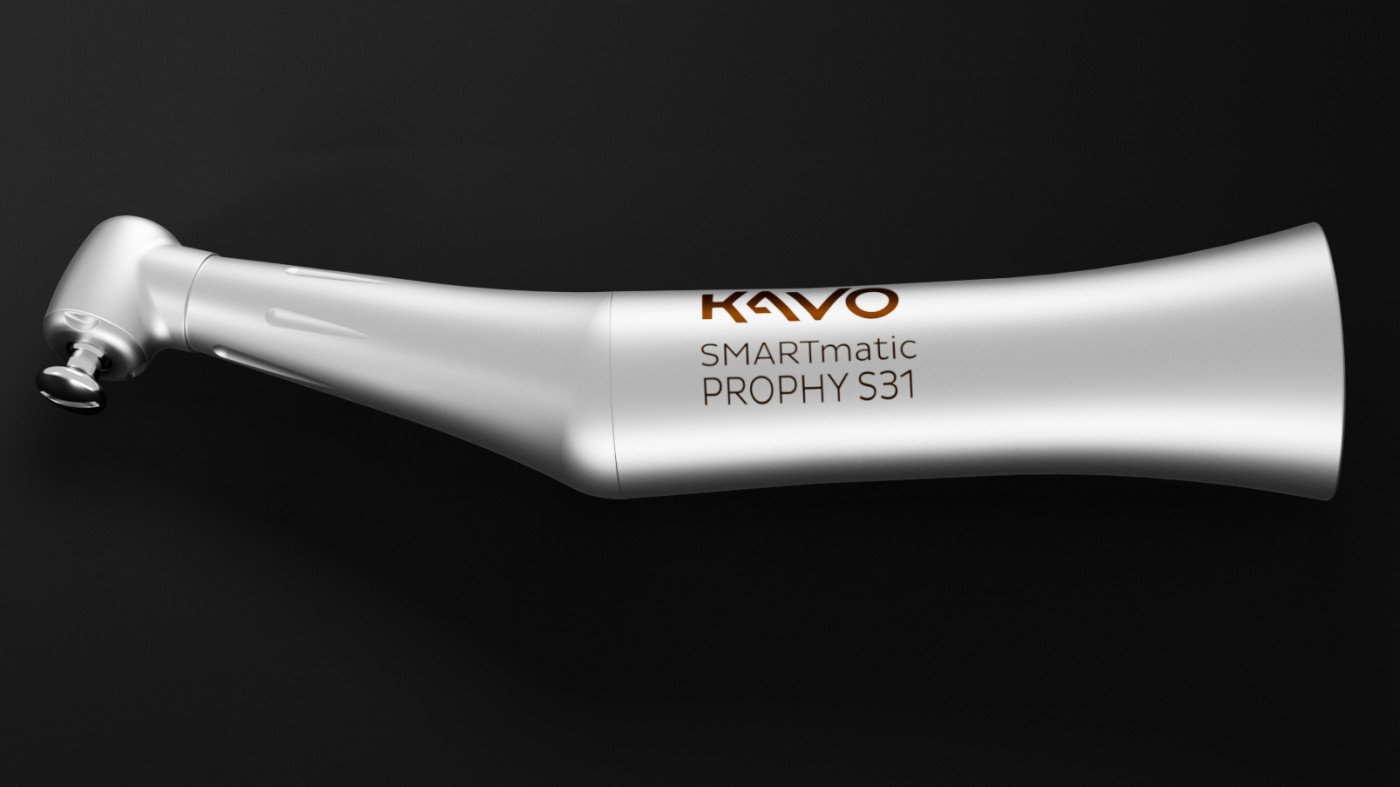

| S31 | Prophy | 8:1 | 20,000 | Screw-in (Snap-on) |
Sealing system to prevent intrusion of paste |

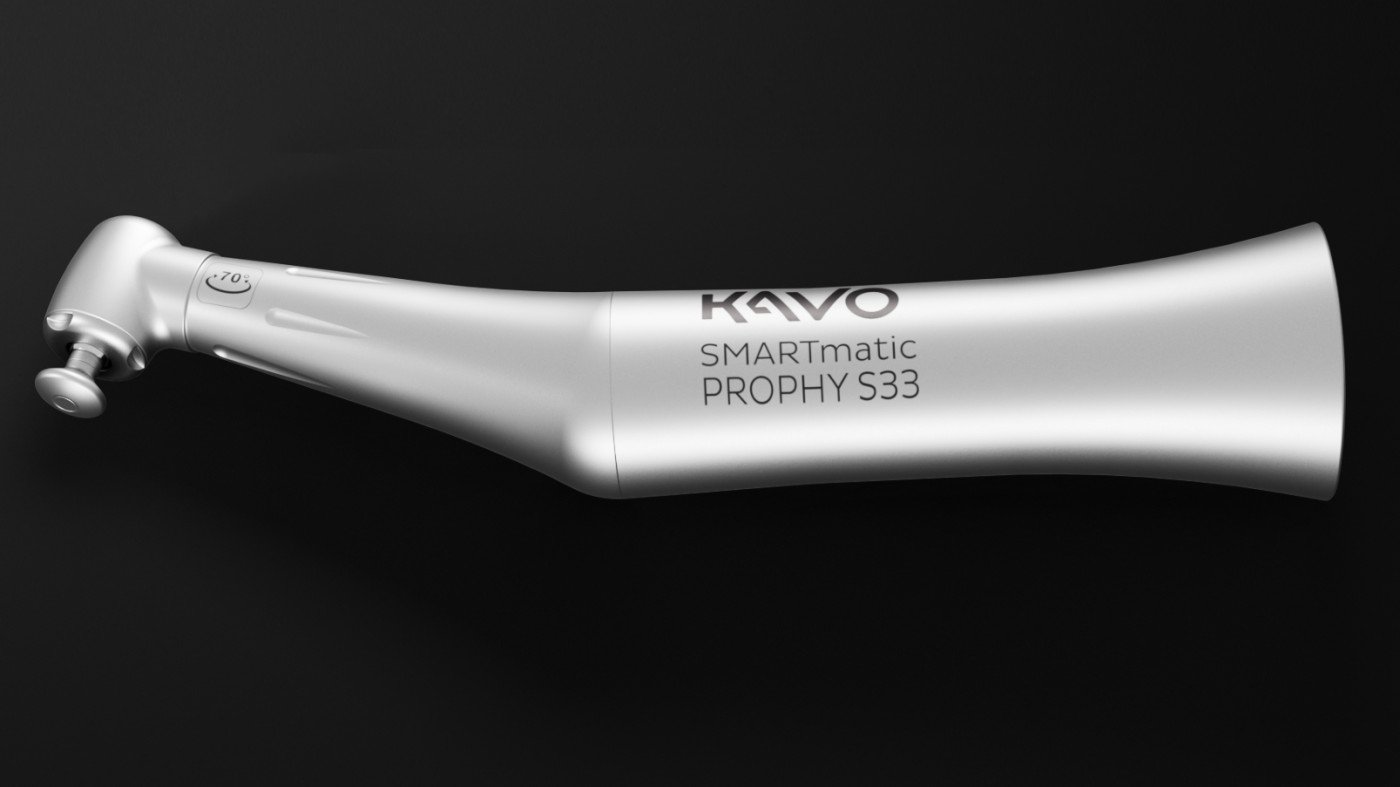

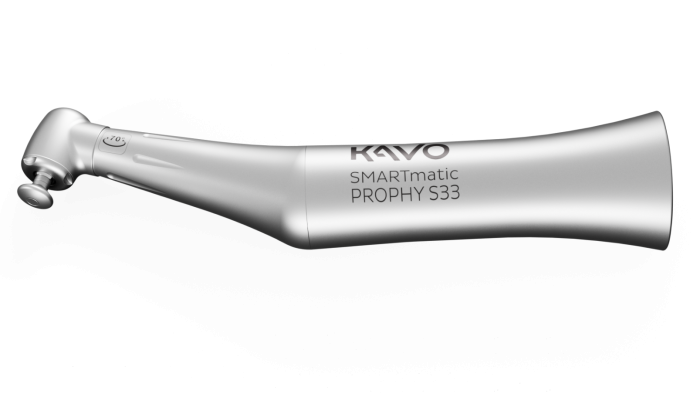

| S33 | Prophy | 8:1 (70° Oscillating rotation) | 20,000 | Screw-in (Snap-on) |
Sealing system to prevent intrusion of paste |

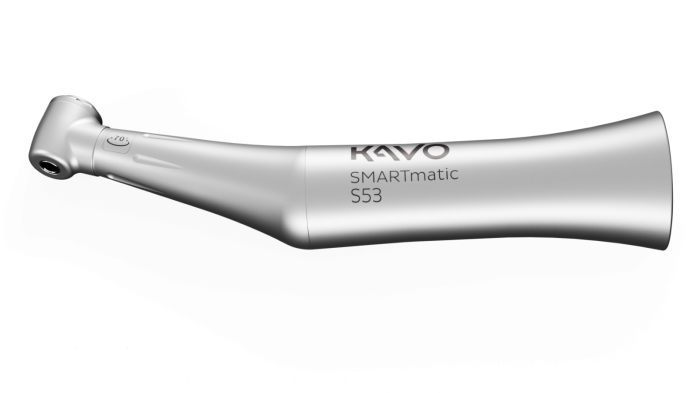

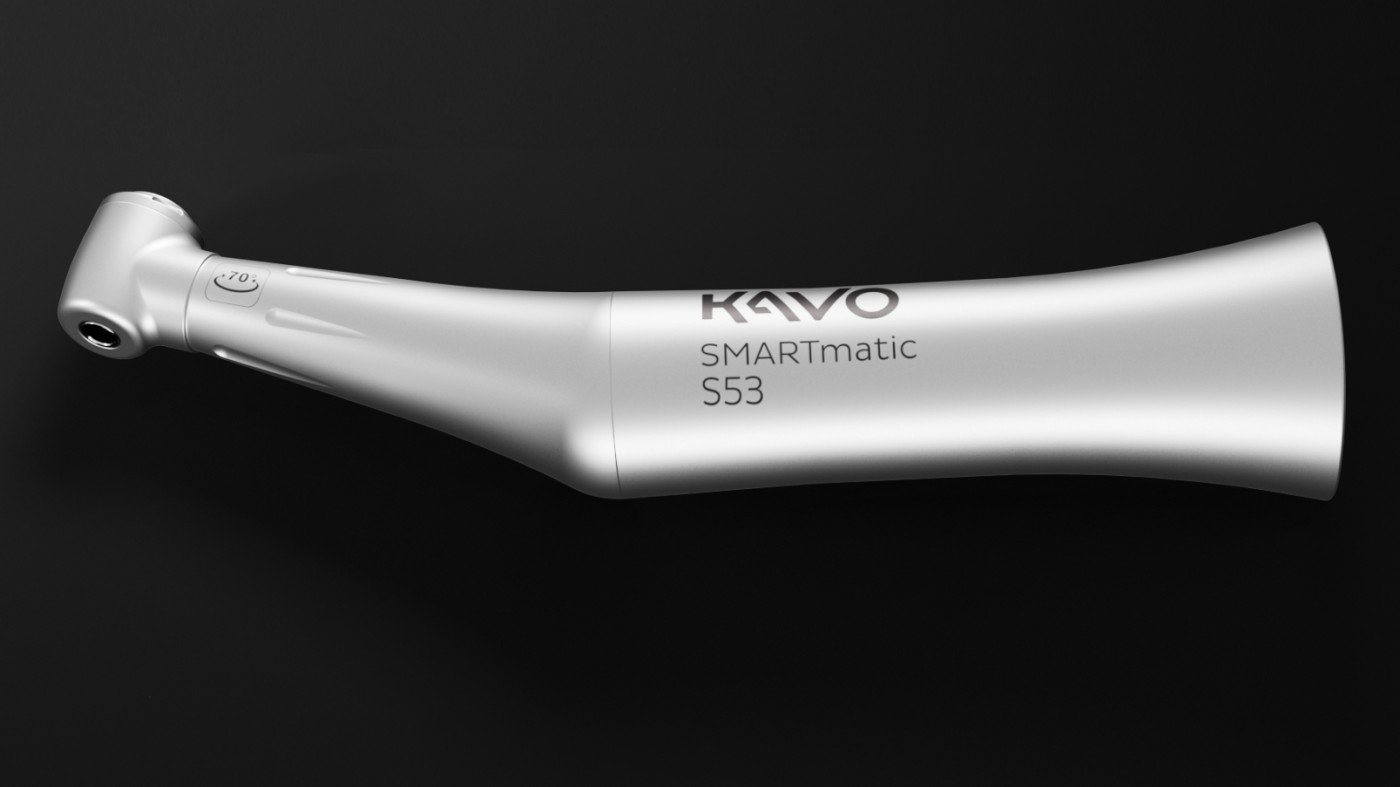

| S53 | Prophy, Endo | 8:1 (70° Oscillating rotation) | 20,000 | Latch type | Usable with polishing and root canal instruments |

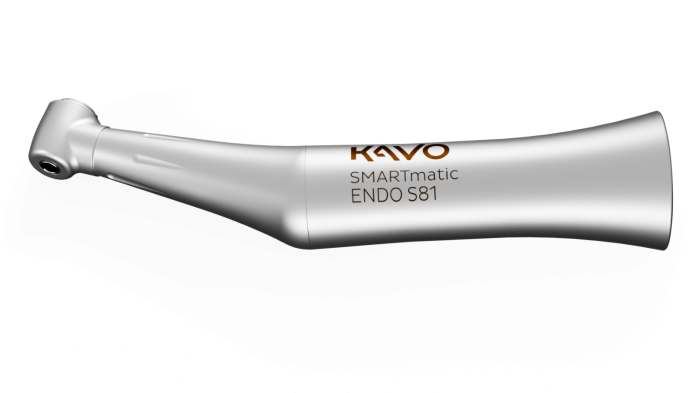

| S81 | Endo | 8:1 | 40,000 | Latch type | - |
| S321 | Endo | 32:1 | 40,000 | Latch type | - |
Downloads
Care Instructions (PA)
Handpiece Care & Maintenance
DownloadTips for prolonging the service life of your dental handpieces.
Reprocessing of KaVo Instruments (Poster) EN-US
DownloadPlease only refer to this poster if you are practicing in the US, as those standards are only valid in the United States of America.
Instructions for Use (IFU)
Product Brochure
PROPHY contra-angle handpieces - pass with flying colours
DownloadDr. Romer's practice was one of the first to test Kavo Smartmatic prophy contra-angle handpieces and Kerr Pro cups with first-rate results.
Top 8 Features - That matter most in a handpiece
DownloadIf you find that you are maintaining your handpieces more and more often, and dealing with frequent performance problems, it may be time to purchase new ones. Now is the time to find the right handpiece for you. Study this list of features through the lens of your own practice’s needs.
SMARTmatic contra-angle handpieces user report Dr. Rusteberg
DownloadThe prophylaxis instruments combining a small head, lightweight, high quality made in Germany and an amazing performance in one cost-effective package. Review of the dental practice Dr. Thomas Rusteberg on KaVo SMARTmatic contra-angles and handpieces
KaVo Handpiece Care Brochure
DownloadThis brochure provides you with information about the necessary care and the consequences of incorrect care with simple descriptions and visual representation.
KaVo SMARTmatic Brochure
DownloadUS KaVo SMARTmatic Series Brochure
