Even long-experienced dentists who are accustomed to convenience are wowed by the many smart features of the KaVo MASTERsurg LUX Wireless.

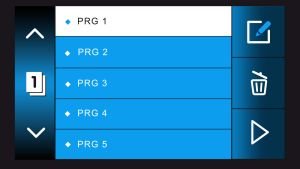

With up to ten customisable work programmes, the KaVo MASTERsurg LUX Wireless is a convenient and highly efficient aid, no matter how challenging the surgical procedure.
The philosophy behind it is to provide you with comfort features that make a big difference when delivering maximum performance on a daily basis:

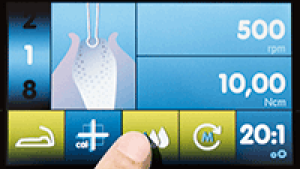

Simple, intuitive programming with exclusive glass panel touchscreen Optimal sight from all angles due to nonreflecting display

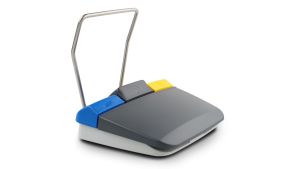

Choose a convenient location in your workplace thanks to the wireless foot control.
Customizable to individual requirements Settings for different bone density, implant systems and users

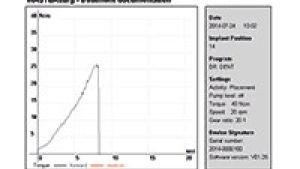

Real time torque display for quality control Storage on SD card, transfer to patient file possible
| Article | Description | Mat. No. |
|---|---|---|
| MASTERsurg LUX Wireless surgical unit | All in one surgical unit including: Surgical motor INTRA LUX S600 LED, multifunctional wireless foot control, motor tubing for S600 LED, starter tube set (5 pieces), motor and instrument holder, bottle holder, integrated peristaltic pump and power supply | 1.009.120 |
| INTRA LUX S600 LED | One of the lightest and smallest motors (28 % lighter and 20 % shorter compared to its predecessor), can be heat disinfected and autoclaved, speed range: 0 – 40,000 rpm, max torque 5.5 Ncm (0 -12,000 U / min)/5.5 to 1.5 Ncm between 12,000 - 40,000 rpm), brushless DC motor with KaVo Mini LED | 1.008.8000 |
| Hose set sterile S600 | Single use coolant hoses (10 pieces) | 1.009.8757 |
| Motor Cable S600 | Flexible motor cable, can be disinfected and autoclaved, cable length 2 m | |
| Handpiece tray | Storage tray for motor and instrument, can be disinfected and autoclaved | 1.009.3411 |
| SURGmatic handpieces and contra-Angles | For surgical procedures with the utmost precision, the KaVo SURGmatic instrument range offers a wide selection of surgical instruments with the full range of rotations, torques and application options. Strike the perfect balance between power and performance. |
Software
Install the free software update easily and conveniently on your MASTERsurg and benefit from the following changes:
Software version 1.60 includes an additional 1:5 transmission ratio as a selection option in the activity ‚Free use‘. The available 1:5 transmission ratio allows for the best possible integration of the new surgical speed increasing instrument SURGmatic S15 L Pro into everyday practice. If a SURGmatic S15 L Pro is in use, the real speed of the dental bur (up to 200,000 rpm) only appears on the display of the surgical unit MASTERsurg if a gear ratio of 1:5 is selected.
Install the free software update easily and conveniently on your MASTERsurg and benefit from the following changes:
Nobel Biocare drill protocols: Software version 1.50 enables the import of Nobel Biocare specific drill protocols including the Nobel Biocare N1™ implant system. The newly added Nobel Biocare N1™ drill protocol contains the following program steps and easy-to-understand symbols, especially designed for the new implant system.
Download Nobel Biocare drill protocools
New rinsing function
The "rinsing function" is a new activity you can use on your MASTERsurg. The rinsing function serves to feed coolant and to start-up the illumination on the handpiece. The motor is not activated during this process in order to protect the patient. The illumination is switched on along with this function. The supplied quantity can be controlled in stepless manner using the speed button on the foot control. To optimise the workflow of treatment, the rinsing function can be programmes as a separate work step just like any other activity. However, the function can also be activated manually by pressing the pump button on the foot control for a longer period of time.
Change of transmission ratios that can be set
The transmission ratio of 1:5 for high-speed handpieces has been replaced by a reduction ratio of 16:1. This setting is designed mainly for the common combination of the following KaVo products: INTRA surgery shank 3624 N (0.534.5660) and INTRA reducing head 67 RIC (0.540.8340). Since this contra-angle handpiece is well-suited for inserting transplants as well, it can be used in one-touch calibration.
Change of the torque profile
The torque curve has been optimised to allow an even higher torque to be reached at high speeds. Accordingly, a torque of 2.5 Ncm at 40,000 rpm is now available to the user.
The present software update applies to devices up to production date 17 Nov. 2014, whereas devices manufactured after this date include this update already.
Tips for prolonging the service life of your dental handpieces.
The present software update applies to devices up to production date 17 Nov. 2014, whereas devices manufactured after this date include this update already. Refer to Guidance for Software-Update document for help
