Restorative: Tips for minimally invasive cavity preparation and beveling in early caries.
- Minimally invasive caries treatment, especially in the approximal area
- Maximum preservation of healthy tooth structure
- Easy filling with flowable composite
- No risk of damage to adjacent teeth
- Patient loyalty through “less fear of drilling”
- Fast and fatigue-free working
The problem
Ideal cavity shapes are rarely achieved in caries therapy: with conventional preparations, the extensions are often larger than necessary. In the critical approximal space, they sometimes even compromise healthy adjacent teeth.
The solution
The oscillating KaVo SONICflex microinvasive tips are specially designed for small, hard-to-reach lesions.

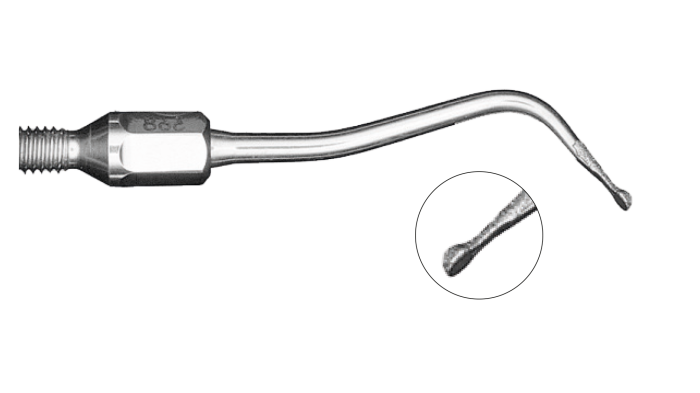

SONICflex micro tips

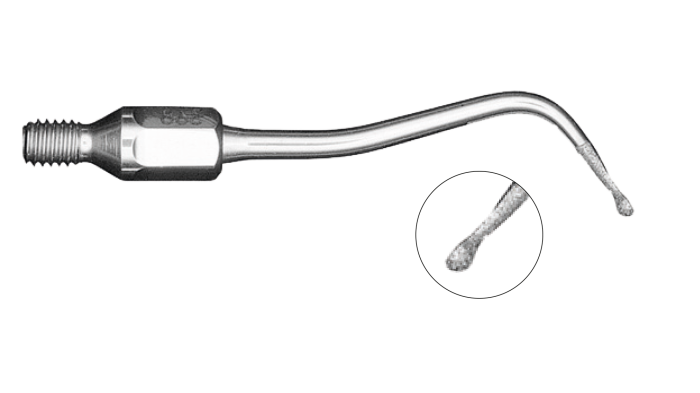

- Treatment: minimally invasive therapy for early caries
- Shape: small hemisphere, mesial, diamond finish D 46
- Order number: 0.571.6811
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1969
(suitable for SONICflex 2008 / L / LS)

- Treatment: minimally invasive therapy for early caries
- Shape: small hemisphere, distal, diamond coating D 46
- Order number: 0.571.6801
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1971
(suitable for SONICflex 2008 / L / LS)

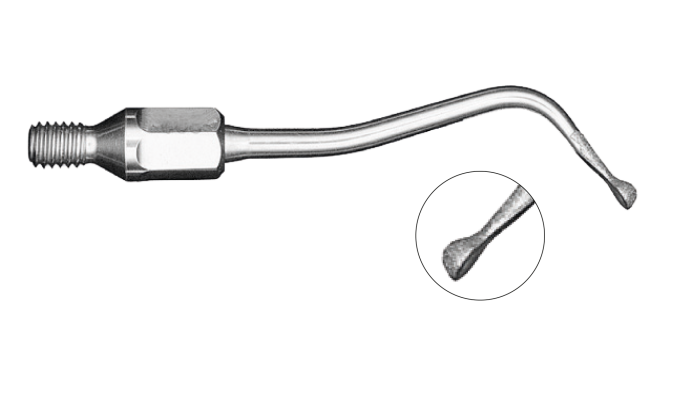

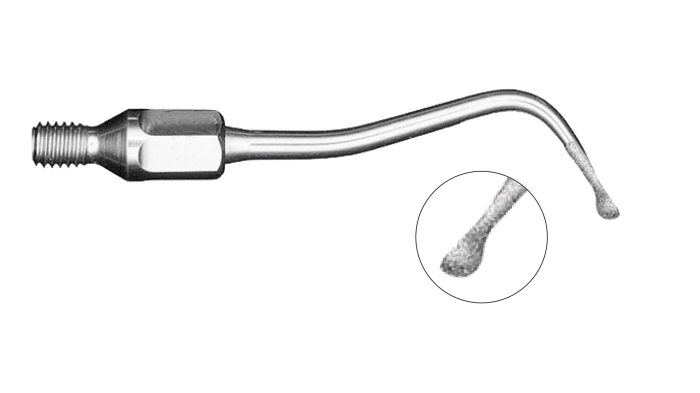

- Treatment: minimally invasive therapy for early caries
- Shape: large hemisphere, mesial, diamond coating D 46
- Order number: 0.571.6831
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1973
(suitable for SONICflex 2008 / L / LS)

- Treatment: minimally invasive therapy for early caries
- Shape: large hemisphere, distal, diamond coating D 46
- Order number: 0.571.6821
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1975
(suitable for SONICflex 2008 / L / LS)
SONICflex bevel & seal tips

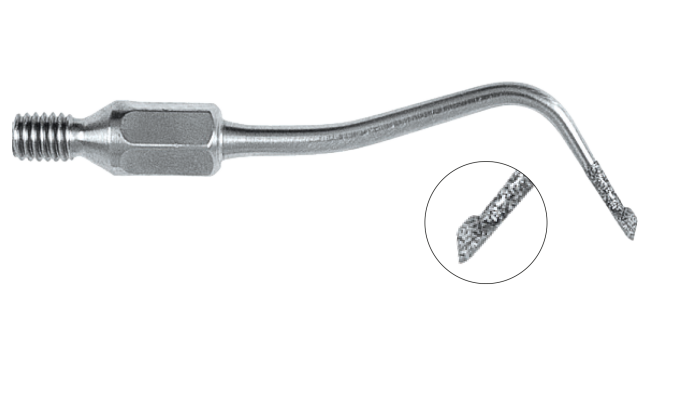

- Behandlung: einseitig diamantierte Spitze zur gezielten Abschrägung präparierter Kleinstläsionen und Schmelzränder. Optimierung der Klebung. Minimierung des Randspalts
- Form: mesial, Diamantierung D 46
- Bestellnummer: 0.571.7392
(passend für SONICflex 2000 N / L, 2003 / L) - Bestellnummer: 1.006.1988
(passend für SONICflex 2008 / L / LS)

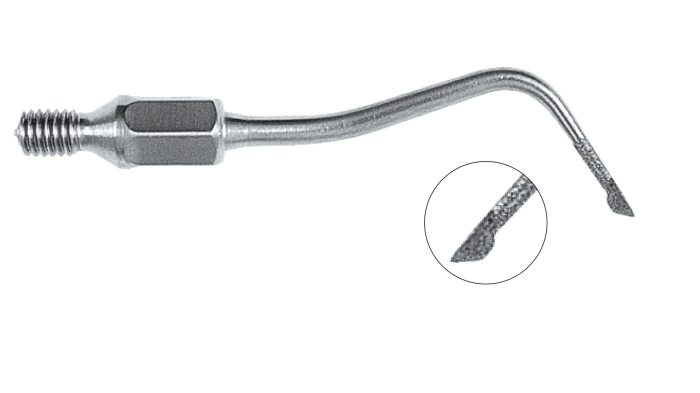

- Treatment: Single-sided diamond-coated tip for targeted beveling of prepared microlesions and enamel margins. Optimizes bonding. Minimizes marginal gaps
- Shape: distal, diamond coating D 46
- Order number: 0.571.6801
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1971
(suitable for SONICflex 2008 / L / LS)

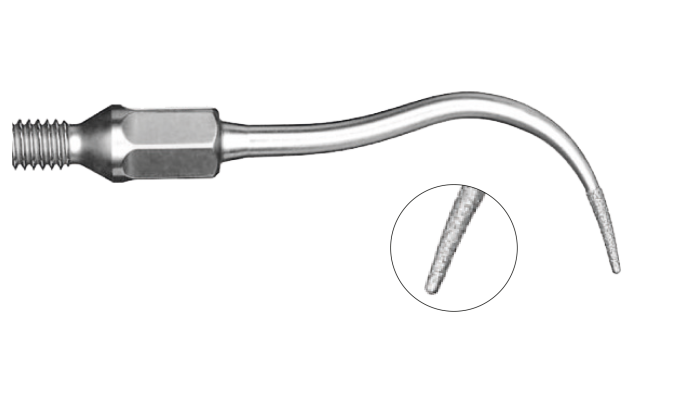

- Treatment: Preparation of fissures, perfect complement to DIAGNOdent pen, DIAGNOcam. Painless opening of the fissure. Particularly suitable for treating children.
- Shape: conical, diameter 0.5 mm, diamond coating D 46
- Order number: No. 45: 1.000.8323
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: No. 45A: 1.007.1506
(suitable for SONICflex 2008 / L / LS)

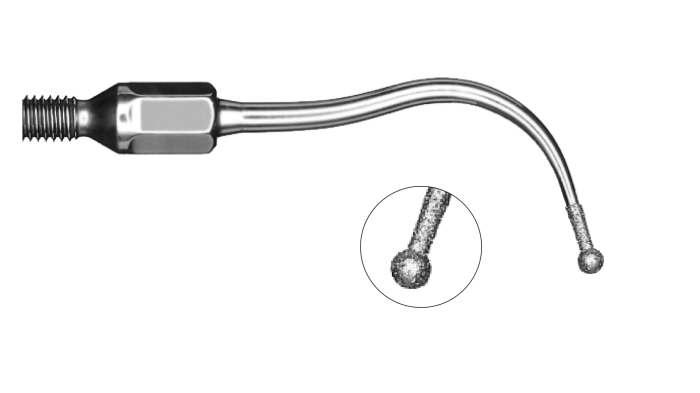

SONICflex cariex tips
- Treatment: diamond-coated tip for excavating caries. Excavation of small caries lesions and for finishing and preparing the cavity. Fast and effective removal of carious material. Very gentle on the patient as there is no vibration transmission. Particularly suitable for treating children
- Shape: spherical, diameter 0.8 mm, diamond coating D 64
- Order number: 1.000.7105
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1980
(suitable for SONICflex 2008 / L / LS)

- Treatment: diamond-coated tip for excavating caries. Excavation of small caries lesions and for finishing and preparing the cavity. Fast and effective removal of carious material. Very gentle on the patient as there is no vibration transmission. Particularly suitable for treating children
- Shape: spherical, diameter 1.2 mm, diamond coating D 64
- Order number: 1.000.7167
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.1981
(suitable for SONICflex 2008 / L / LS)

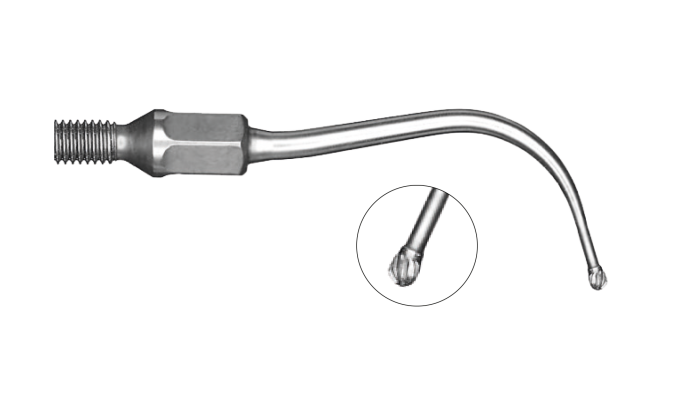

- Treatment: Carbide tip for excavating caries. Excavation of large caries lesions. Removal of resistant material and quick and effective removal of carious material. Very gentle on the patient as there is no vibration transmission. Particularly suitable for treating children
- Shape: Spherical, diameter 1.0 mm, carbide
- Order number: 1.000.7362
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.2002
(suitable for SONICflex 2008 / L / LS)

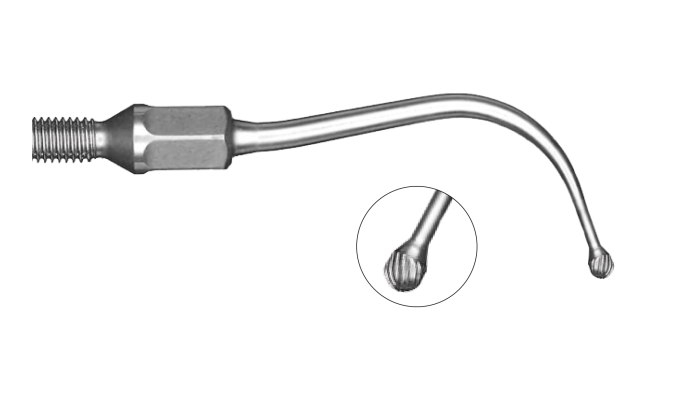

- Treatment: Carbide tip for excavating caries. Excavation of large caries lesions. Removal of resistant material and quick and effective removal of carious material. Very gentle on the patient as there is no vibration transmission. Particularly suitable for treating children
- Shape: Spherical, diameter 1.4 mm, carbide
- Order number: 1.000.7363
(suitable for SONICflex 2000 N / L, 2003 / L) - Order number: 1.006.2004
(suitable for SONICflex 2008 / L / LS)
- Single-sided diamond-coated (mesial and distal) tips for defect-oriented cavity preparation.
- Minimally invasive treatment for early-stage caries.
- Improved bonding thanks to enlarged enamel surface.
- Occlusal and lateral access, enabling preparation from all angles. Healthy tooth structure is preserved as much as possible.

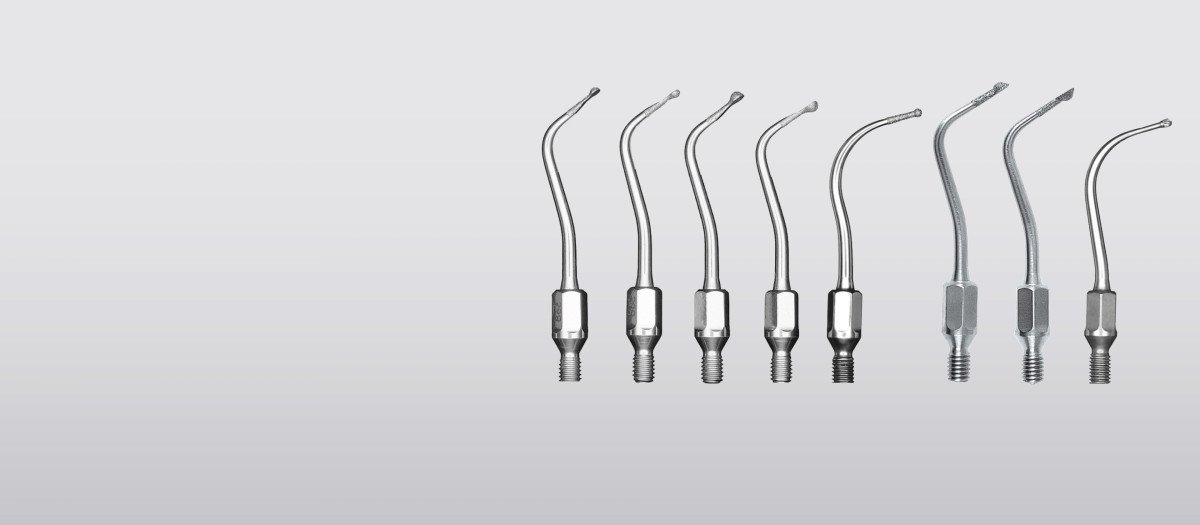

- KaVo SONICflex micro – versatility brought to the tip.
With 3 partially diamond-coated tip shapes, you can achieve optimal results in preparation. All shapes are available for both mesial and distal surfaces.
- Small hemisphere – preparation
- Large hemisphere – preparation
- Bevel shape – chamfering of the enamel edges
SONICSYS is a complete system for oscillating tooth treatment and adequate care of the treated tooth surfaces (SONIC = sound, SYS = system).
Instructions for use for SONICflex tips paro
Instructions for use for SONICflex tips cariex
Instructions for use for SONICflex tips cem

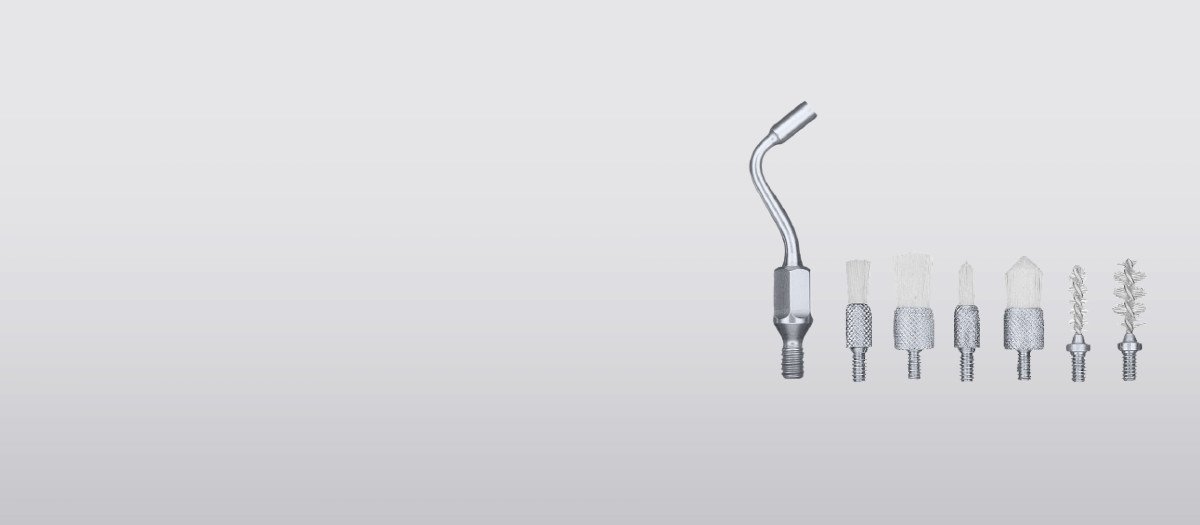

Instruments for use for SONICflex tips clean
