Description
Tips for minimally invasive, axial retrograde preparation, filling of the root canal and preparation of undercuts
- Diamond-coated tips for axially-aligned retrograde root canal preparation according to Dr. Ilgenstein
- Retrograde root canal sealing
- Small access
- Axially-aligned preparation
- Minimal cavities
The problem
The retrograde root canal treatment: limited space, restricted lateral access. Bone substance has to be protected and the stability of the tooth preserved. Rotating instruments sometimes produce the opposite effect: large bone windows, more difficult axial preparation of the canal.
The solution
The KaVo SONICflex retro system (0.571.0381) permits gentle and efficient sound-based retrograde root canal treatment with contra-angle diamond-coated tips:
- Isthmus (left and right).
- Cylinder (left and right).
- T-shape (left and right).
- Special tip for displaced apices.
- Filling instruments (left and right).
SONICflex retro Tips

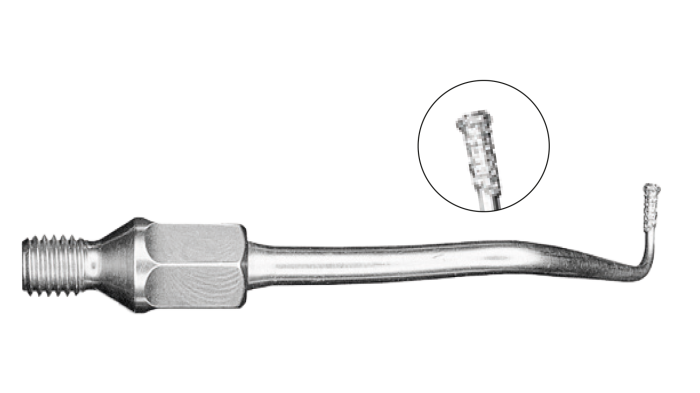

- Therapy: searching for/locating of root canal; significant work simplification during retrograde cavity preparation
- Form: extremely narrow cylindrical tip, left, diamond coating D 46
- Order number: 0571.7322
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2040
(compatible with SONICflex 2008 / L, 2008 S / LS)

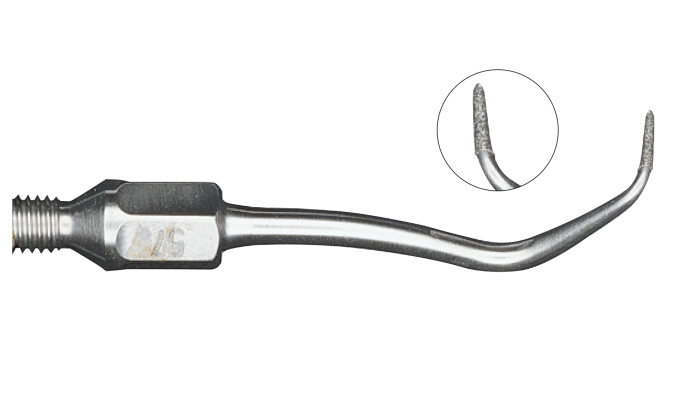

- Therapy: searching for/locating of root canal; significant work simplification during retrograde cavity preparation
- Form: narrow cylindrical tip, right, diamond coating D 46
- Order number: 0571.7332
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2041
(compatible with SONICflex 2008 / L, 2008 S / LS)

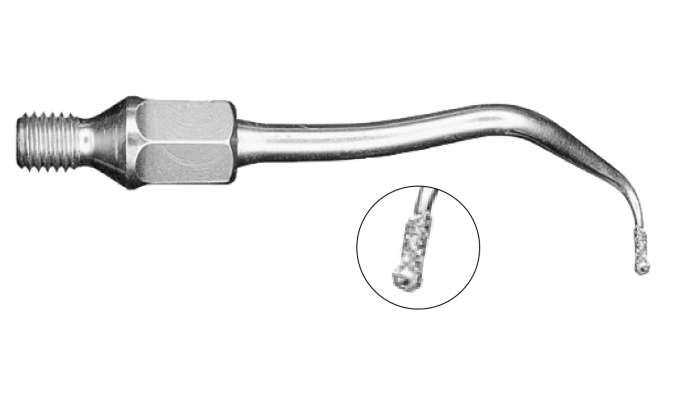

- Therapy: preparation of root canal, significantly simplified access, even with highly-convoluted roots
- Form: left, small cylinder, diamond coated D 64
- Order number: 0571.5541
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2036
(compatible with SONICflex 2008 / L, 2008 S / LS)

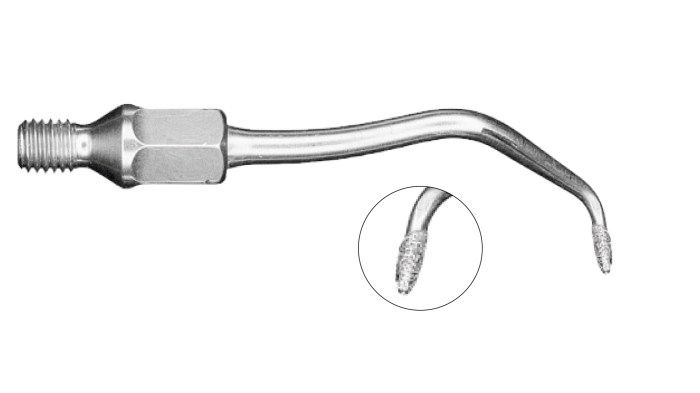

- Therapy: preparation of root canal, significantly simplified access, even with highly-convoluted roots
- Form: right, small cylinder, diamond coating D 64
- Order number: 0571.5581
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2035
(compatible with SONICflex 2008 / L, 2008 S / LS)

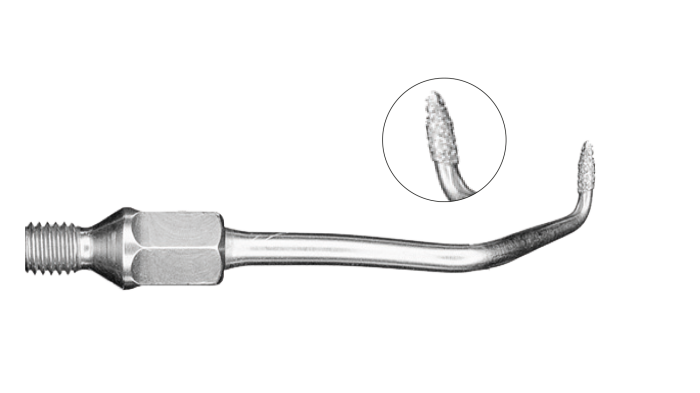

- Therapy: preparation of the undercut; correct, internal circumferential root canal preparation, with minimal bone defects
- Form: pear-shaped, small, left, diamond coating D 64
- Order number: 0571.5521
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2037
(matching for SONICflex 2008 / L, 2008 S / LS)

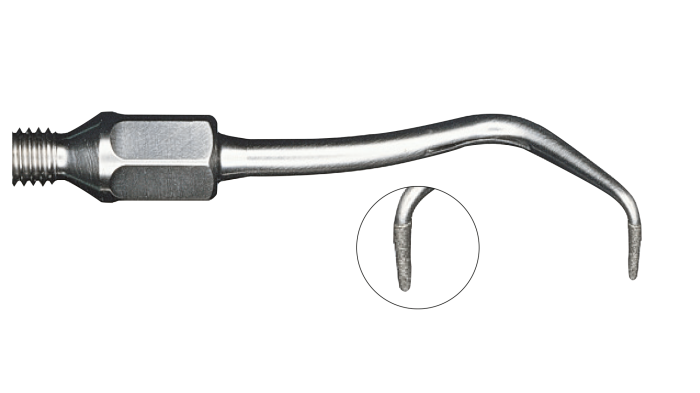

- Therapy: preparation of the undercut; correct, internal circumferential root canal preparation, with minimal bone defects
- Form: pear-shaped, small, right , diamond coating D 64
- Order number: 0571.5561
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2038
(matching for SONICflex 2008 / L, 2008 S / LS)

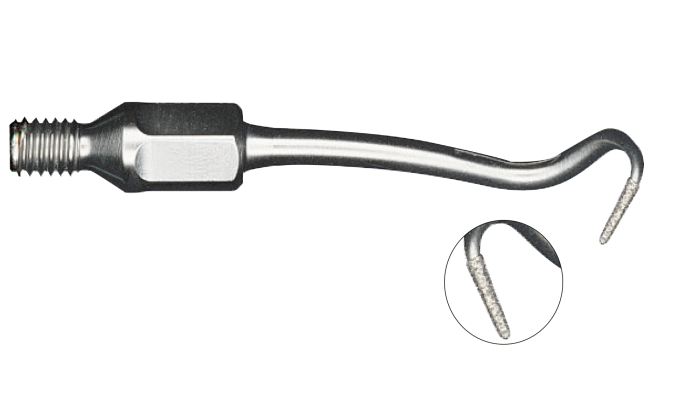

- Therapy: for roots, with apices highly-inclined towards buccal cavity
- Form: diamond coating D 46
- Order number: 0571.7342
(compatible with SONICflex 2000 N / L, 2003 / L) - Order number: 1006.2039
(compatible with SONICflex 2008 / L, 2008 S / LS)
Features
- Small, elegantly designed tips, for axially-aligned, retrograde root canal preparation in the front and side teeth areas, with minimum bone defects
- Diamond-coated tips and the sonoabrasive technique enable, for the first time, genuine retrograde cavity preparation
- SONICflex retro pointer makes it easy to locate main, side and connecting canals
- Cylindrical SONICflex retro tips for root canal preparation
- T-shaped SONICflex retro tips for preparation of undercuts
- Special tip for axially-aligned opening and preparation of strongly orally-inclined apices
- Preparation to a penetration depth of 5 mm feasible
- Filling instruments of the same size for condensing the retrograde root filling material
- SONICflex retro tips feature optimised guidance of the coolant.
- Sterile cooling fluid can be supplied via an adapter to the SONICflex
